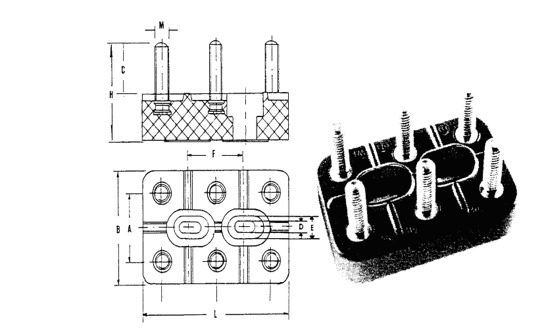

Voorzien van ovale bevestigingsgaten en zes polig ~ Warmteklasse : B (140°C)
De klemmenborden worden compleet met verbindingsstroken, rondels en moeren geleverd.
" I " = maximum stroomsterkte in Ampere. ~ Afmetingen in millimeter " mm ".
| Type |
L |
B |
H |
A |
C |
D |
E |
F |
M |
I |
Z |
| AK 205 |
40 |
25 |
20 |
15 |
10 |
4.2 |
7.9 |
11-19 |
M3 |
6 |
B-33 |
| AK 216 |
43 |
27 |
24 |
16 |
12 |
4.2 |
7.9 |
12-20 |
M4 |
16 |
B-34 |
| AK 225 |
56 |
36 |
29 |
20 |
16 |
5.2 |
10.5 |
16-24 |
M5 |
25 |
C-02 |
| AK 230 |
70 |
45 |
33 |
25 |
18 |
6.3 |
11.3 |
20-32 |
M6 |
63 |
C-24 |
| AK 250 |
95 |
60 |
48 |
35 |
27 |
8.7 |
14.9 |
30-54 |
M8 |
100 |
A-56 |
| AK 255 |
120 |
75 |
55 |
45 |
35 |
10.7 |
18.5 |
30-60 |
M10 |
160 |
A-75 |
